LOG-X Series 22-Ton Gas Log Splitter: 209cc Engine, 7-Second Cycle

LOG-X Series 22-Ton Gas Log Splitter: 209cc Engine, 7-Second Cycle

11,734.00 dh
11,734.00 dh 15,019.00 dh
Specification Details Specification Details
Max. Splitting Force 22 Ton Engine 209cc Gas Engine
Cycle Time 7 Seconds Max. Log Length 21 in.
Hydraulic Cylinder 3.5 × 19 in. Max. Hydraulic Pressure 25.5 MPa / Approx. 3,698 PSI
Gear Pump 14 GPM, 2-Stage Operating Position Horizontal Only
Wheel Size 13 × 5.0-6 Max. Towing Speed 25 MPH
Hydraulic Oil Fill 2.5 gal. Compatible Hydraulic Oil AW32, AW46 or Universal Hydraulic Oil
Engine Oil SAE 10W-30 Minimum Fuel Rating 87 Octane
Log Cradles 2 Included Assembly Required
Shipping Configuration 3 Cartons Included Oils 9.5 L Hydraulic / 0.6 L Engine Oil

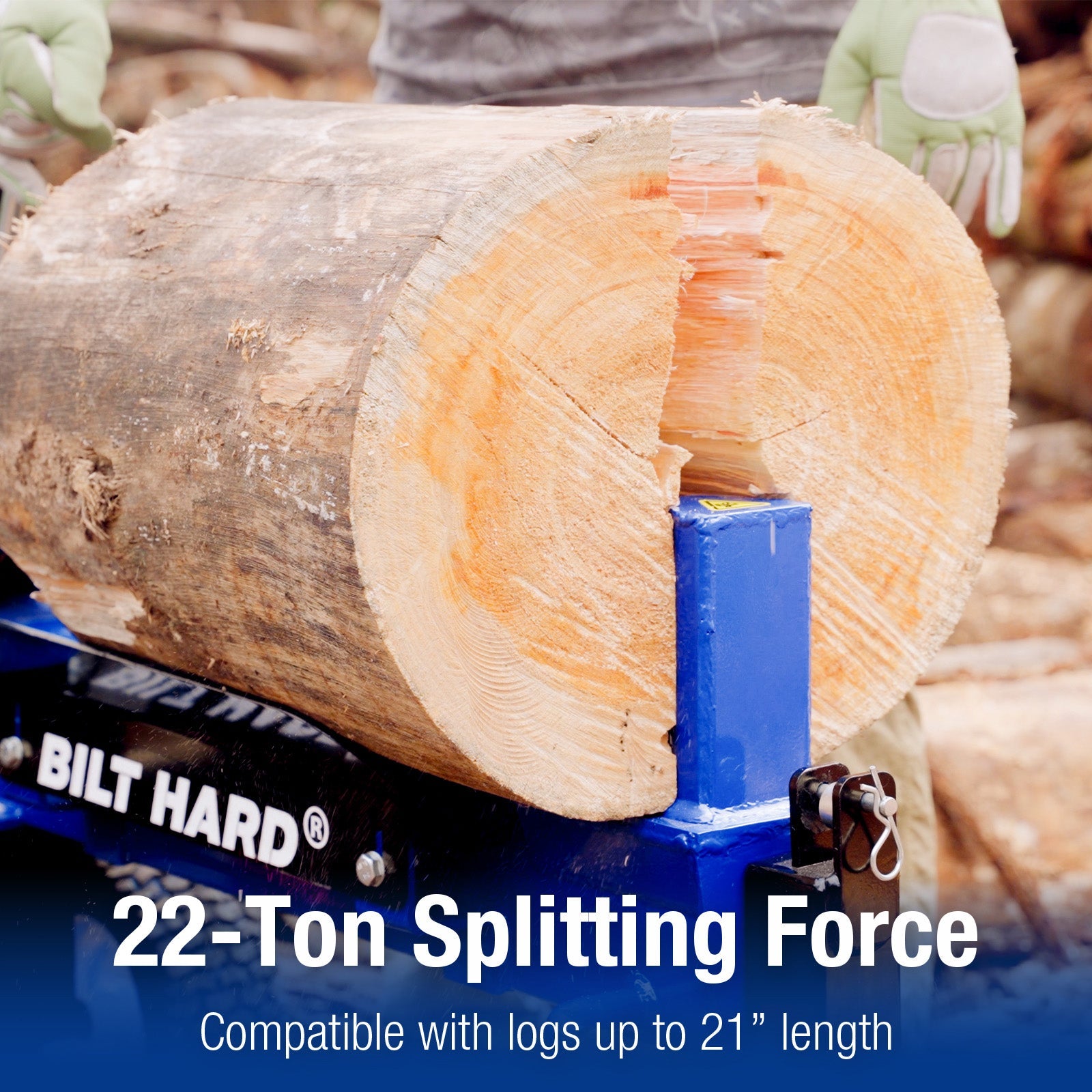

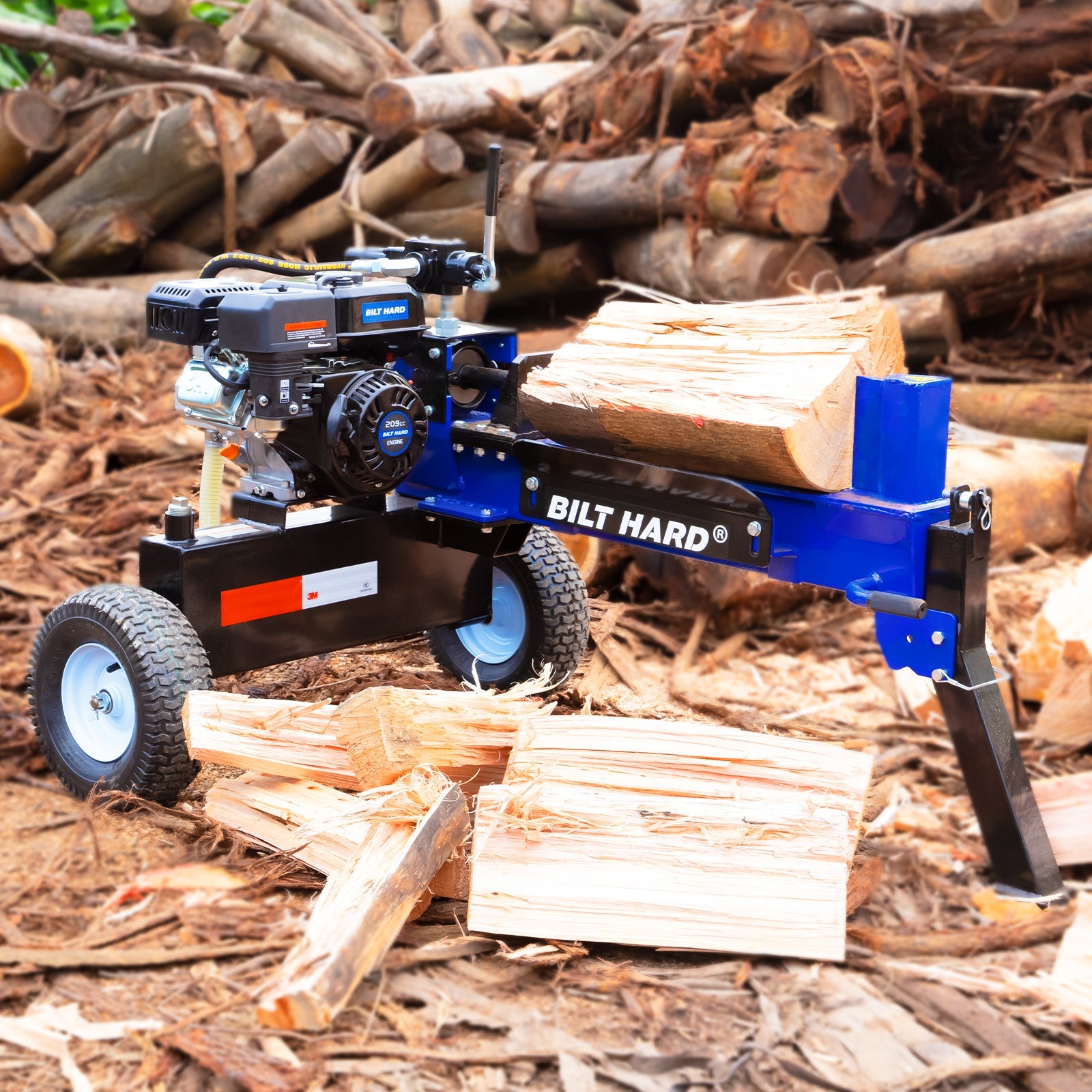

【22-Ton Splitting Force】 Built with heavy-duty steel construction, this gas log splitter delivers up to 22 tons of force for splitting logs up to 21 inches long.

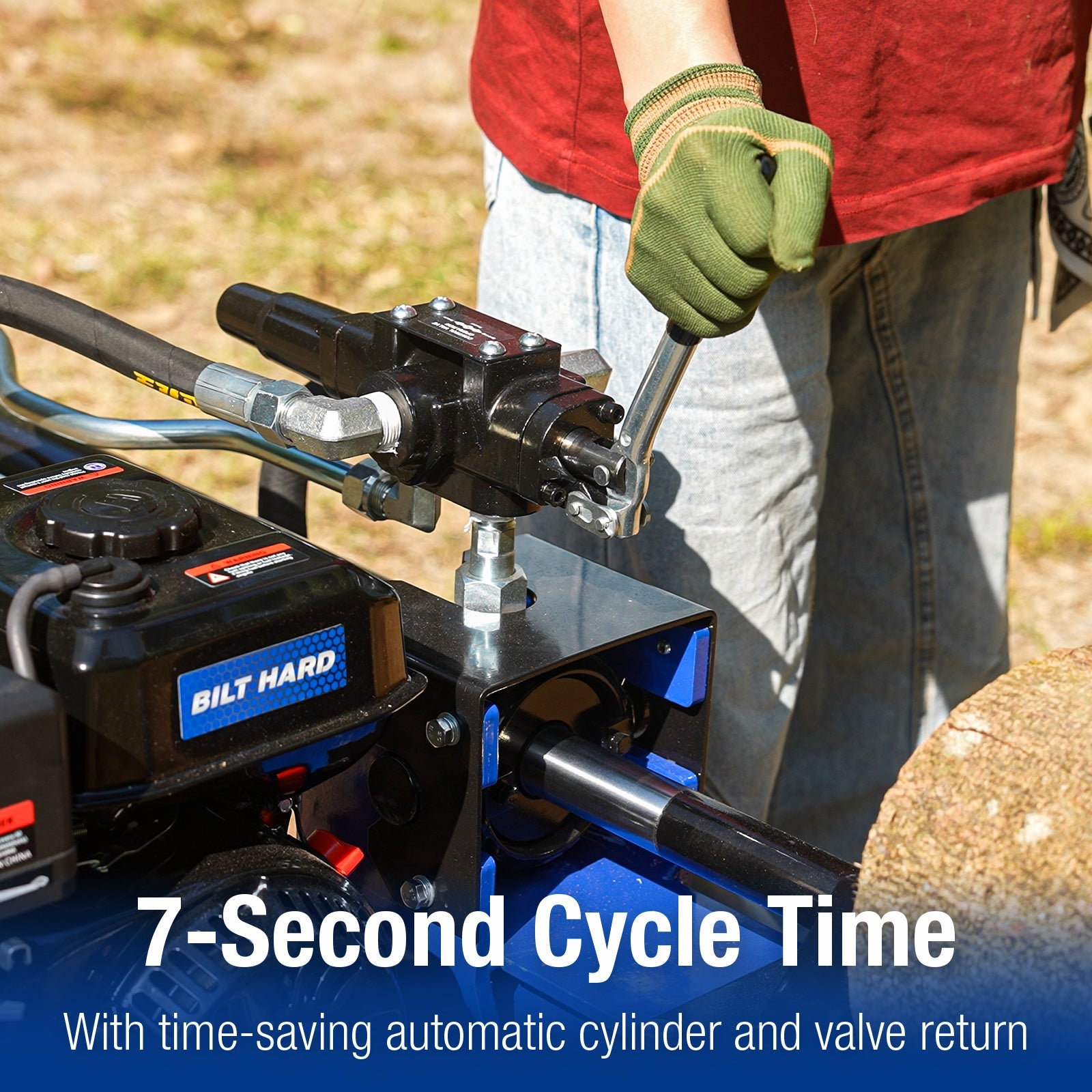

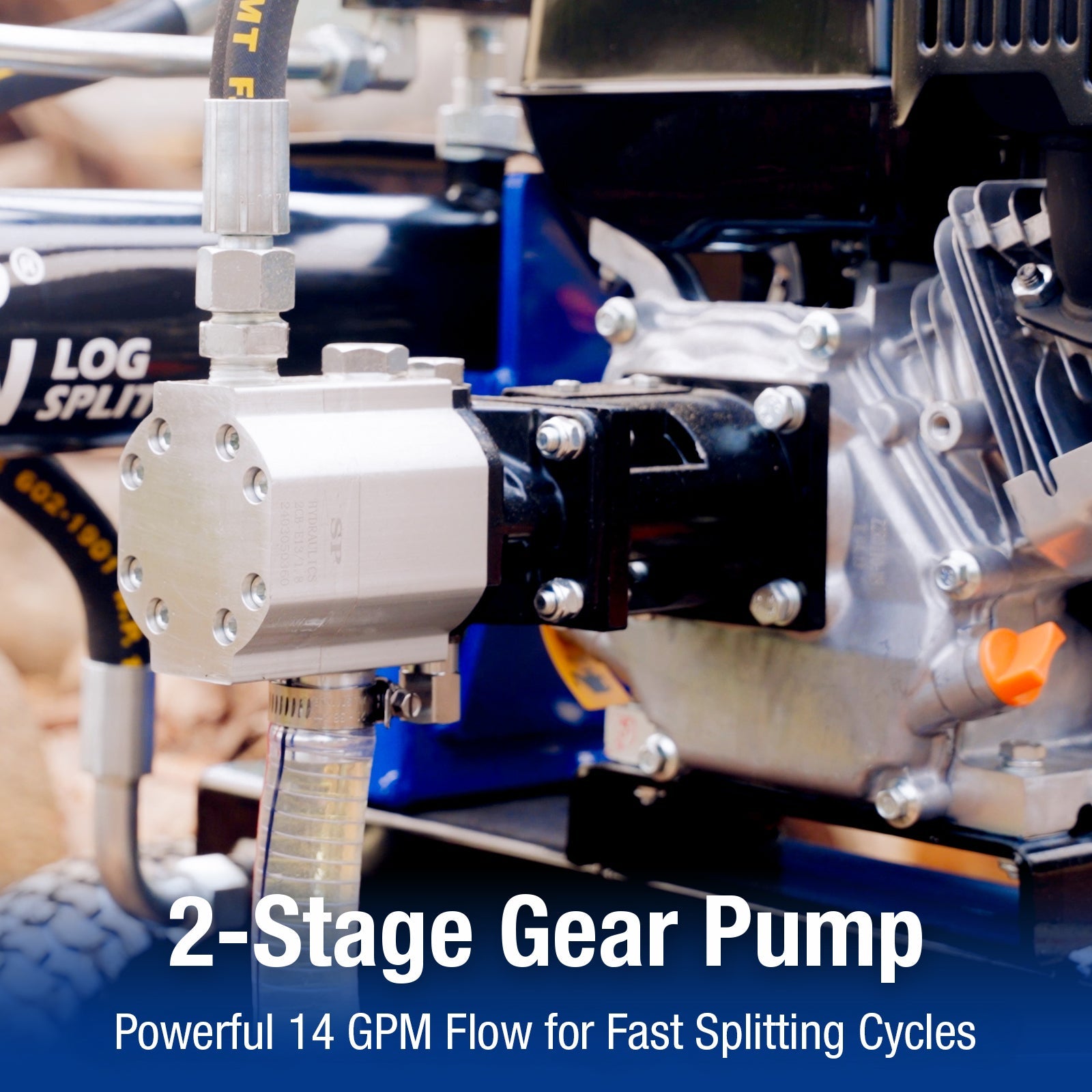

【Fast Hydraulic Performance】 A 209cc gas engine and 14 GPM two-stage gear pump deliver a fast 7-second cycle for steady firewood processing.

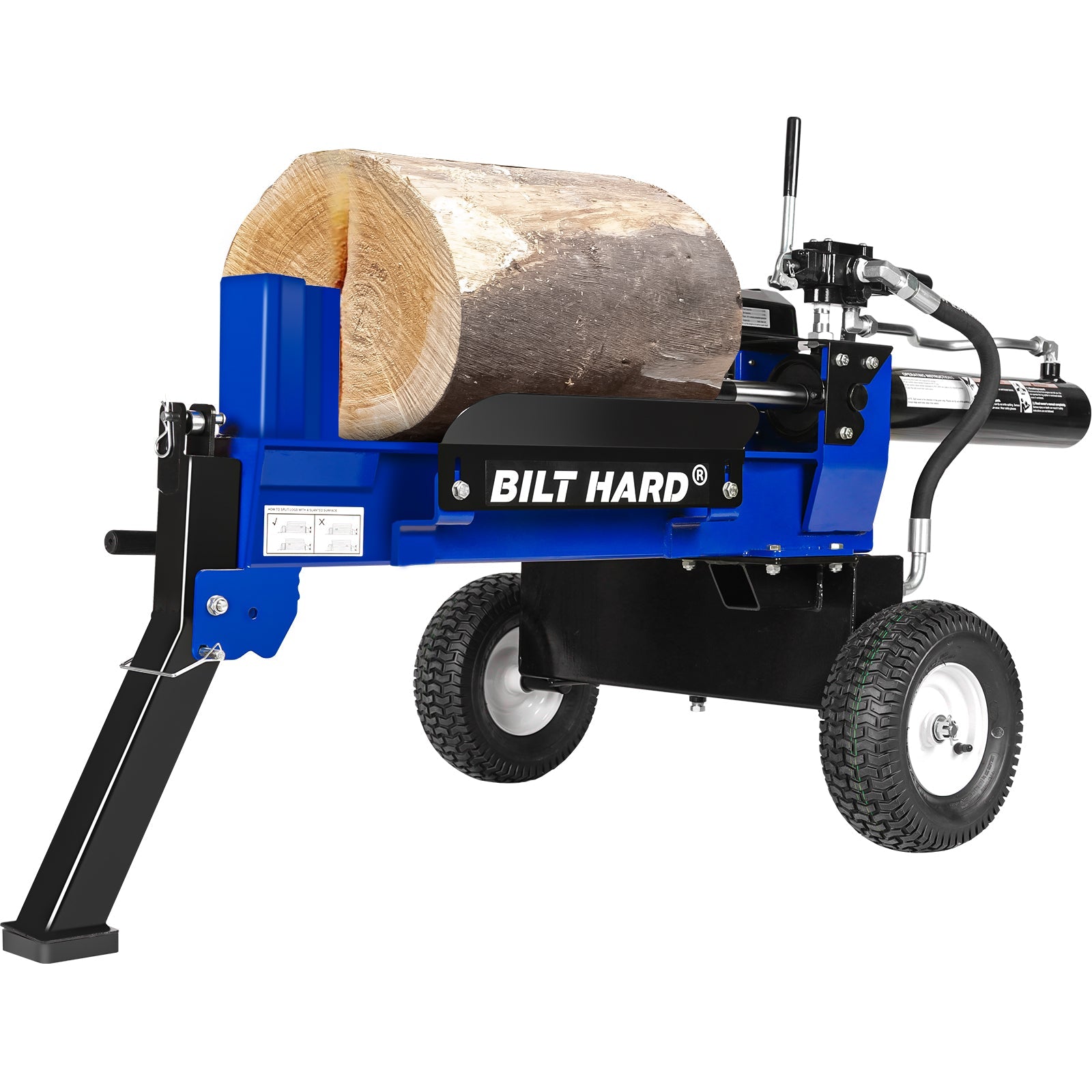

【Horizontal Splitting Design】 The splitter is designed for horizontal operation and includes dual log cradles to help support logs and split wood along the beam.

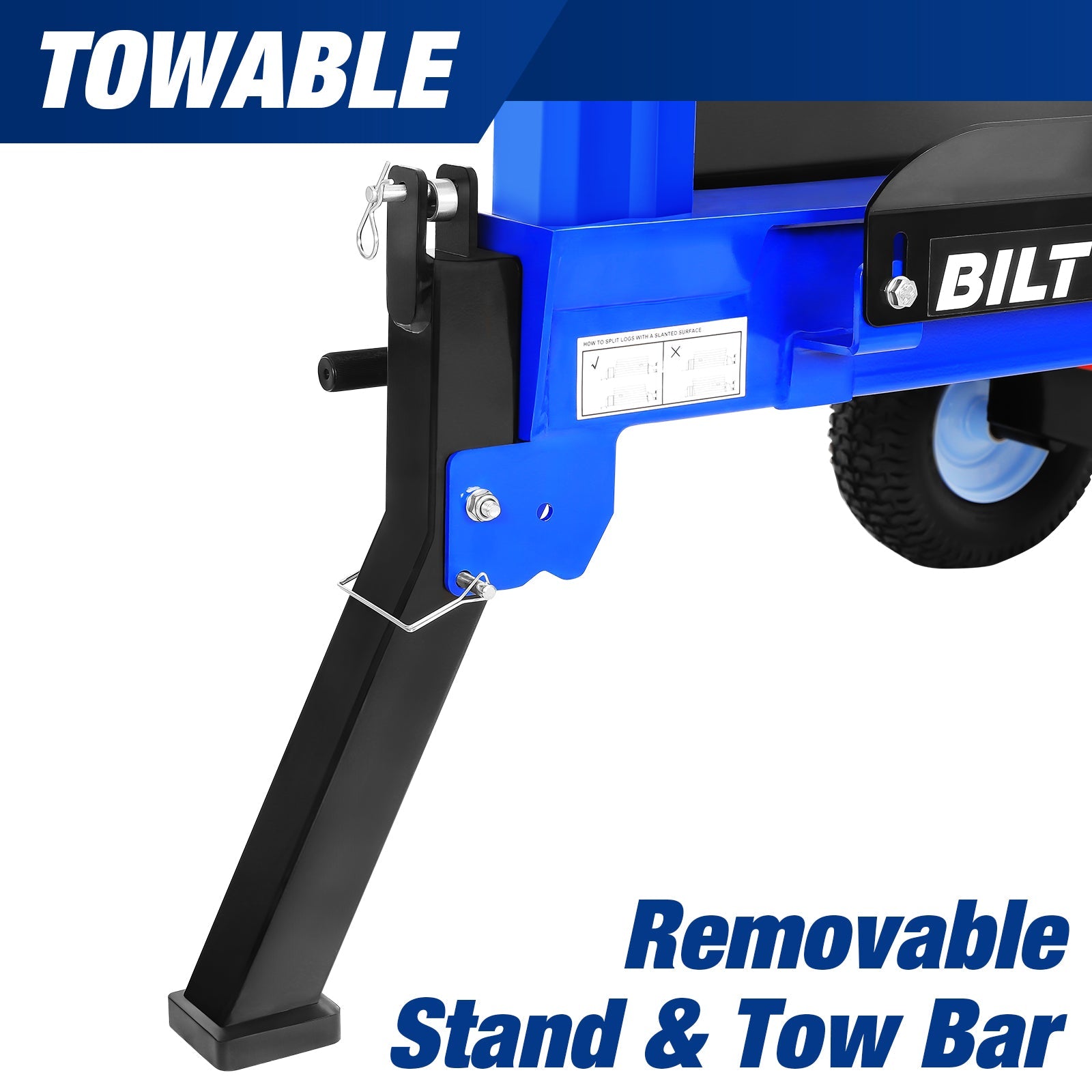

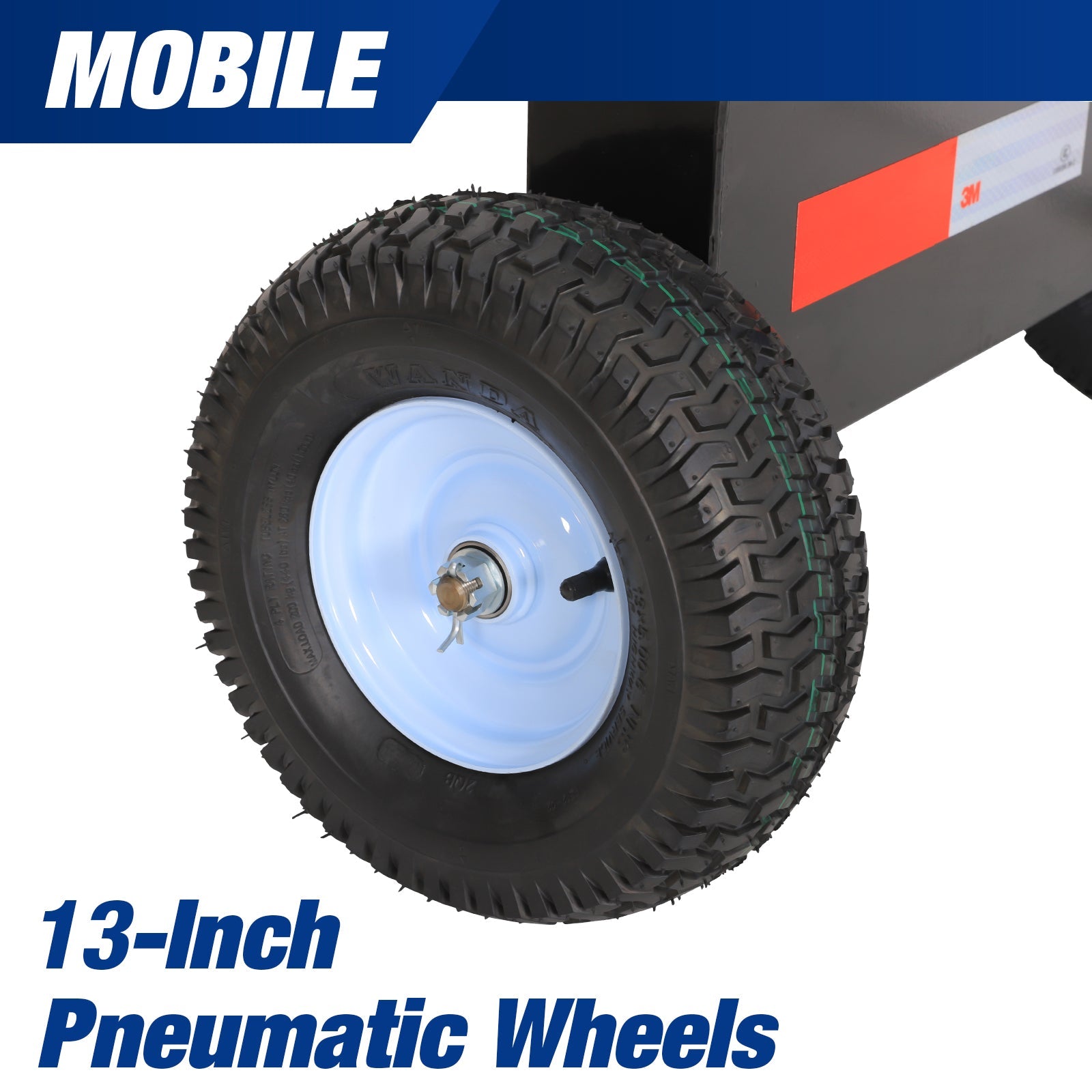

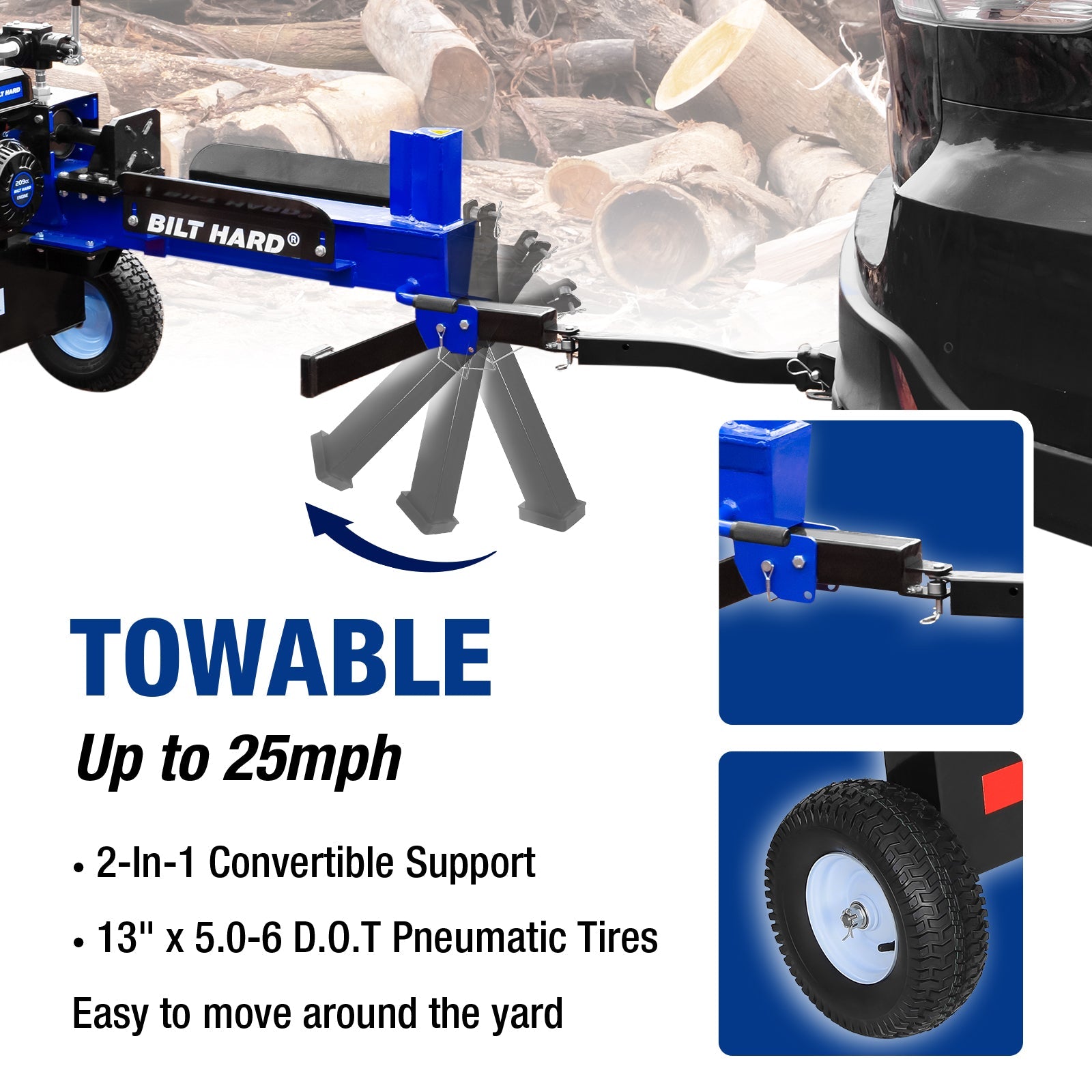

【Towable and Mobile】 A towable hitch and 13 × 5.0-6 wheels make it easier to reposition the splitter. Maximum towing speed is 25 MPH.

【Oil Included, Filling Required】 The package includes 9.5 L of hydraulic oil and 0.6 L of engine oil. Both fluids must be added during assembly before the first startup.
